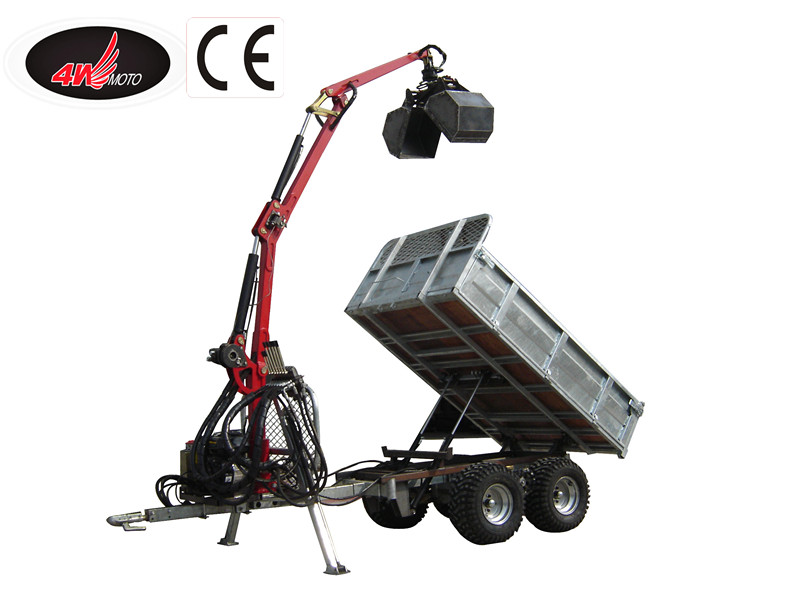

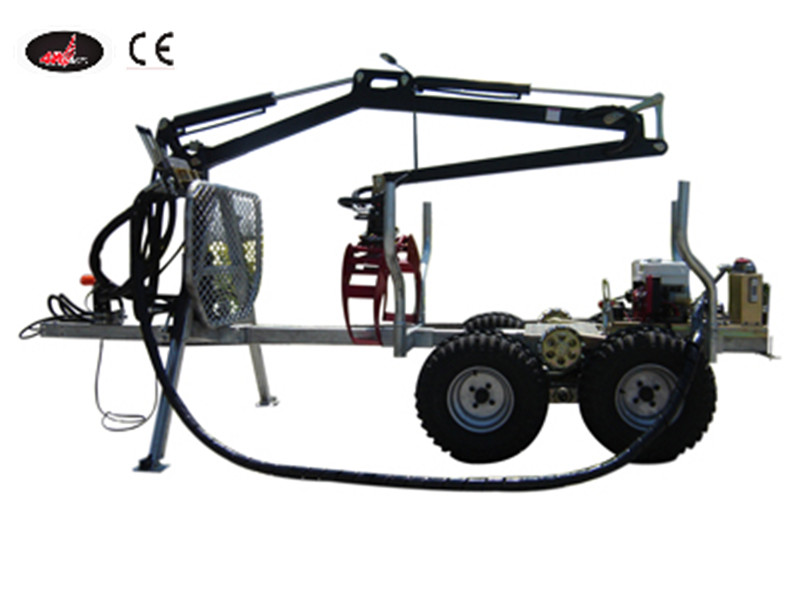

Grapple Crane 350>>homeGrapple Crane 350

Specification
Engine:7HP/5kw, pull start
Max rotary speed:3000r/m
Pressure of oil pump: 16MPa
Pump supply oil flow:4ML/R
Working temperture: -40℃to 80℃
Length of crane arm:3.5M
Lifting capacity of Max.arm reach:200kg
Swing angle:+-90℃
Weight of crane:90kg
Whole machine weight of Crane 350-I ,580kg
Whole machine weight of Crane 350-II:630kg
Max loading of trailer:1500kg
Container Loading:28 units/40hc, 12 units/20FT
2006/42/EC certification
Crane 350-I: without automatic rolldrive
Crane 350-II:4x4 with automatic rolldrive
Hydraulic Winch Specification
Remote control:waterproof
Remote control area:30M
Rated line pull:800KG
Speed:10-25m/min
